Electronic condensate drain with digital level control

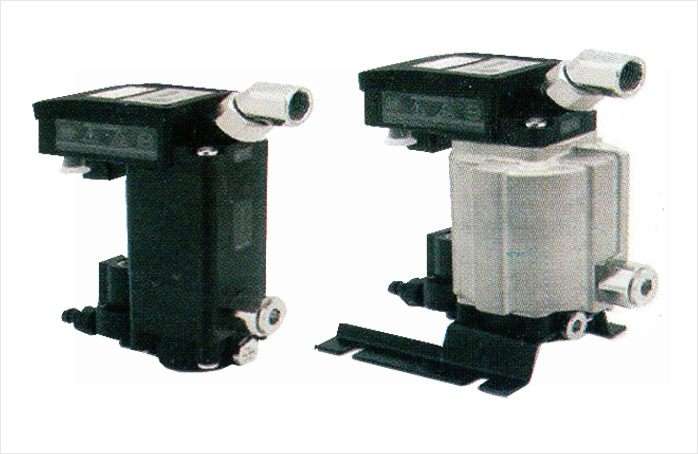

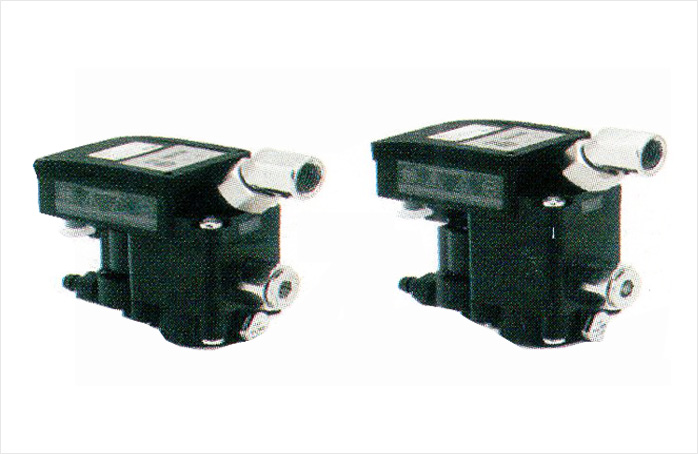

The new series of LogiDrain level drains has been designed to solve the problem of condensation water drainage from production plants and compressed air distribution systems. The specific technology applied permits a controlled drainage of condensation water without any compressed air leaks.
LogiDrain is equipped with an integrated storage tank inside which a level sensor has been mounted and is controlled
by an intelligent electronic circuit based on an 8-bit microprocessor logic. All drain functions are displayed on a control panel. A test button is available on the control panel for manual drainage.
LogiDrain starts working as soon as a sensor detects water
at max. level and controls the opening of the solenoid valve in order to take the water level back down to a minimum value, leaving a small residual quantity to prevent the system from discharging compressed air. In case of trouble, the control circuit unlocks the drain pipes by carrying out a series of forced opening/closing cycles of the solenoid valve. If this is not enough, the problem is reported outside by an alarm with potential-free contact that can be used to draw the attention of maintenance staff in order to instruct the plant control logic.
LogiDrain is produced in several models with different flow rates. All versions are suitable for working with any type of condensation water even the most aggressive one or water containing a high percentage of oil. A built-in cup of filter, that is easy to clean, prevents the solenoid valve from clogging.
Famiglia LD Tutte
LD 101 Easy Lock
LD 200 Easy Lock
LD 202 Easy Lock
LD100
Selection Overview
Compressor Performances
COMPRESSOR
OUTPUT (KW)
COMPRESSOR
DELIVERY
VOLUME (m3/min)
AFTERCOOLER
TANK
PREFILTER
DRYER
FILTER
PIPELINE
< 15
3
LD100 AD925T - MD5
LD200L
TD1
LD100
AD950T
TD1
MD5
LD101 COMPACT
LD100
AD925T
MD5
LD101 COMPACT
LD100
AD950T
TD1
MD5
LD101 COMPACT
LD101
30
6
LD101 COMPACT
LD101 AD925T
MD5
55
10
75
15
LD200
AD950T
MD20
110
20
LD101 COMPACT
LD101
AD950T
MD20
130
25
145
30
LD202
AD950T
MD20
200
35
LD200
AD950T
MD50
250
40
300
60
LD203
355
70
LD200L
TD1
LD101 COMPACT
LD101
AD950T
LD202
LD101
TD1
560
100
750
140
LD202L
TD1
LD203
900
175
LD204
LD200 TD1
LD200
1200
200
1300
250
LD203
1500
300
LD202
LD202
The specifications contained in this chart refer to a temperate climate (blue) that is dominant in most industrialized areas.
